【Bag number】: 96-3584
【Rate of Airflow】: 6912-322560m3min
【Application】: widely used in building materials, cement, metallurgy, machinery, chemical and refractory industries.

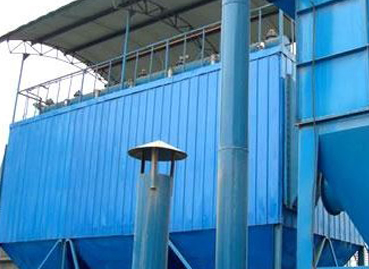

【Introduction】: PPC-type Air-box pulse bag type dust collector is widely used in building materials, cement, metallurgy, machinery, chemical and refractory industry, especially for cement crushing, packing, top of your library, cooler of clinker and various mill and other dust collection system (or dust removal system), strong applicability.

PPC-type Air-box pulse bag type dust collector is widely used in building materials, cement, metallurgy, machinery, chemical and refractory industry, especially for cement crushing, packing, top of your library, cooler of clinker and various mills and other income dust system (or dust removal system), strong applicability.

The series precipitator process according to the actual situation of the scene, flexible design online or offline uniform high efficiency cleaning system, a variety of cleaning methods to overcome these shortcomings.According to process requirements and system pressure, choose high or low pressure, online or offline pulse cleaning. Pulse valve working life is 5 years or more, the bag is more than 2 years. Low operating costs, the use of compressed air energy injection drainage, cleaning the bottom of the bag to ensure pressure.

Air inlet and outlet gas from the precipitator dust in the air inlet into the cabinet by turning to ash bucket inclined baffle, while flow slows down, due to inertia, gas coarse dust particles into the hopper, with fine dust particles fold upward airflow into the filter chamber, dust bag attached to appearance, purified gas through the filter bag into the upper clean room, clean each compartment through the outlet collection by dust collection system master fan sucked out and into the atmosphere.
