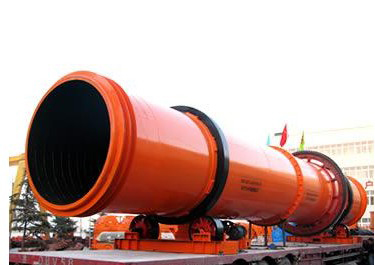

Dryer

【Diameter × length】: Φ1.2×8.0m-Φ3.6×28m
【Production capacity】: 1.9-76.0t/h
【Application】: Mainly used in mineral processing, building materials, metallurgy, chemical industry and other departments drying material. with certain humidity or granularity
【Introduction】: Dryer is mainly used in mineral processing, building materials, metallurgy, chemical industry and other departments drying certain humidity or granularity of the material. rotation Dryer adaptability of materials that can dry various materials, and equipment operation is simple and reliable, it has been widely adopted.

Dryer is mainly used in mineral processing, building materials, metallurgy, chemical industry and other departments drying certain humidity or granularity of the material. rotation Dryer adaptability of materials that can dry various materials, and equipment operation is simple and reliable, it has been widely adopted.

Features

It mainly consists of rotation body, lifting plate, gear, support equipment and seals and other components. I plant Dryer lifting plate using the new device, with a guide, average current, lifting and many other features make the material in the radial section Dryer full uniform to become thin curtain material, all, all of the state, full contact thermals , to make full use of thermal energy purposes. I plant Dryer reasonable selection of operating parameters, coal consumption and electricity consumption 10-15% lower than normal Dryer, Taiwan 10-15% increase in production over time, has been in the cement and mineral processing enterprises have been widely used.

Work principle

The heat from the combustion device Dryer, Dryer uses downstream of the heating method. Therefore need to be dried material from the feed tank, feed slide into the cylinder, he incurs the spiral into the copy board. Because Dryer tilted, the material on the one hand and the rotation under the action of gravity flow back, the other material is copied repeatedly took a board to the top and then continue with Young Caesar down, so that the material in the barrel to form a uniform curtain full and tube heat exchange with hot gas stream, since repeated Yang scattering material, contained in the water is gradually dried, so as to achieve the purpose of drying.

Technical parameters

H series rotation Dryer

Technical parameters

Size (m)	Cylinder volume (m³)	Production capacity (t / h)	Installation inclination (%)	Maximum Inlet Temperature (℃)	Main motor (kw)	Total weight (t)
Size (m)	Cylinder volume (m³)	Production capacity (t / h)	Installation inclination (%)	Maximum Inlet Temperature (℃)	Main motor (kw)	Total weight (t)
Φ1.2 × 8.0	9.0	1.9-2.4	3-5	700-800	7.5	9
Φ1.2 × 10	11.3	2.4-3.0	3-5	700-800	7.5	11
Φ1.5 × 12	21.2	4.5-5.7	3-5	700-800	15	18.5
Φ1.5 × 14	24.7	5.3-6.6	3-5	700-800	15	19.7
Φ1.5 × 15	26.5	5.7-7.1	3-5	700-800	15	20.5
Φ1.8 × 12	30.5	6.5-8.1	3-5	700-800	18.5	21.5
Φ1.8 × 14	35.6	7.6-9.5	3-5	700-800	18.5	23
Φ2.2 × 12	45.6	9.7-12.2	3-5	700-800	22	33.5
Φ2.2 × 14	53.2	11.4-14.2	3-5	700-800	22	36
Φ2.2 × 16	60.8	13.0-16.2	3-5	700-800	22	38
Φ2.4 × 14	63.3	13.5-16.9	3-5	700-800	37	45
Φ2.4 × 18	81.4	17.4-21.7	3-5	700-800	37	49
Φ2.4 × 20	90.4	19.3-24.1	3-5	700-800	45	54
Φ2.4 × 22	99.5	21.2-26.5	3-5	700-800	45	58
Φ2.6 × 24	127.4	27.2-34.0	3-5	700-800	55	73
Φ3.0 × 20	141.3	30.1-37.7	3-5	700-800	75	85
Φ3.0 × 25	176.6	37.7-47.1	3-5	700-800	75	95
Φ3.2 × 25	201	42.9-53.6	3-5	700-800	90	110
Φ3.6 × 28	285	60.8-76.0	3-5	700-800	160	135

Indirectly-heated Dryer

Technical parameters

Project Diameter × length	Outer diameter of drum (mm)	Inner diameter of drum (mm)	Shell length (m)	Cylinder volume (m³)	Inclination of cylinder	Type of Lifting plate	Maximum Inlet Temperature (℃)	Dimensions (m)
Φ1.5 × 15m Φ1.5 × 17m Φ1.5 × 19m	1500	500	15 17 19	20.27 22.97 25.68	3-5%	Lift type	850	16.2 × 2.7 × 2.7 18.2 × 2.7 × 2.7 20.0 × 2.9 × 2.9
Φ1.8 × 21m Φ1.8 × 23m Φ1.8 × 25m	1800	650	21 23 25	35.91 39.33 42.75	3-5%	Lift type	850	22.5 × 2.7 × 2.7 24.5 × 2.9 × 2.9 26.5 × 2.9 × 2.9
Φ2.2 × 21m Φ2.2 × 23m Φ2.2 × 25m	2200	800	21 23 25	58.10 63.61 69.15	3-5%	Lift type	850	---
